ISO 7000: Graphical Symbols for Equipment Explained

October 19, 2026
ISO 7000: Graphical Symbols for Equipment Explained

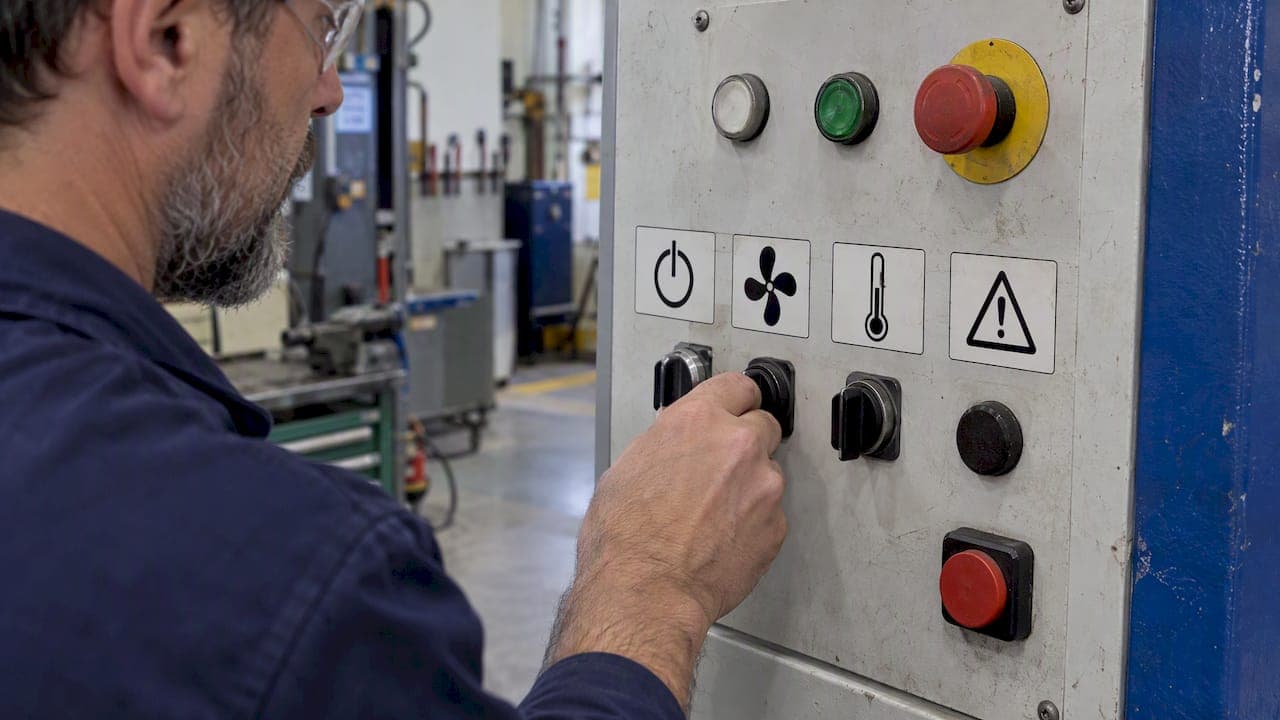

ISO 7000 is an international standard that registers graphical symbols for use on equipment, so that a person operating a machine, device or control panel can understand an instruction without reading a word of any language. It is a catalog of icons, not a management system, which means there is no "ISO 7000 certification" to earn. A product can use symbols from ISO 7000, and a company can say so accurately, but nobody audits or certifies the standard itself.

If you landed here because a customer, a procurement form or a security questionnaire mentioned ISO 7000, this guide covers what it is, how it connects to IEC 60417, how it differs from similar-sounding standards, and how to cite it without getting caught by a sharp-eyed reviewer.

Skypher
Answer Security Questionnaires Faster
Skypher uses AI to help teams answer security questionnaires, with support for multiple formats and integrations across common business tools.
Explore Skypher

TL;DR

  • ISO 7000 is a registered collection of graphical symbols placed on equipment to tell users how to operate it. It is maintained by ISO/TC 145/SC 3.
  • No certification exists. You can use symbols from the standard or mark a product as using them, but a company cannot be "ISO 7000 certified."
  • ISO 7000 and IEC 60417 share one database. The joint ISO/IEC symbol database holds more than 5,200 symbols, so most teams search it rather than two separate libraries.
  • Production-grade files are paid. Pull vector artwork from the official ISO or IEC webstores, not from wikis or image searches.
  • Do not confuse it with ISO 7001 (public information), ISO 7010 (safety signs) or ISO 8000 (data quality).

Table of Contents

What ISO 7000 actually is

The ISO page for the standard describes ISO 7000 as a collection of graphical symbols placed on equipment or parts of equipment of any kind to instruct the person using it about operation. Think of the power symbol on a laptop, the standby icon on a monitor, the "read the manual" book on an industrial controller, or the icons on a vehicle dashboard. Each symbol has a registration number, a title, a description of its meaning and artwork.

A few facts about the document itself, all from the ISO catalog entry:

  • The current published edition is ISO 7000:2019, Edition 6, published in July 2019.
  • It is owned by technical committee ISO/TC 145/SC 3.
  • It replaced the 2014 edition, which is now withdrawn.

Because the symbol set grows as new registrations are approved, ISO also distributes it as an online collection of symbols rather than only as a static document. When someone says "ISO 7000" in daily work, they usually mean the registry of numbered symbols (for example, symbols written as ISO 7000-2493), not a PDF you read cover to cover.

Why language-free symbols matter

The point of the standard is to communicate operating and safety information without language-dependent labels. That is a real advantage for any company shipping hardware, embedded devices or equipment-adjacent software into several countries: a symbol does not need translating, does not overflow a small label, and is recognized by trained users in many markets. It also reduces the chance that a mistranslated label creates a safety or support problem.

ISO 7000 and IEC 60417: one database, two standards

ISO 7000 has an electrotechnical counterpart. IEC 60417 is the IEC counterpart to ISO 7000 and the only IEC standard for graphical symbols for use on equipment. It is managed by IEC SC 3C in collaboration with product committees.

The two are distinct standards under different committees, but the organizations publish them together. The IEC/ISO database on graphical symbols contains the complete set of symbols from both documents and positions itself as a one-stop shop for end users. The joint ISO/IEC SYMBOL database contains more than 5,200 graphical symbols.

In practice that means:

  1. A mechanical engineer and an electrical engineer on the same product can draw from the same library.
  2. Hybrid electro-mechanical equipment is less likely to end up with two different icons for the same function.
  3. You cite a symbol by its registration number and the standard it comes from (ISO 7000 or IEC 60417), which keeps your documentation unambiguous.

If you maintain a design system for a device with a physical interface, we recommend treating the joint database as your single source of truth and recording the registration number next to every symbol you use.

Getting the symbols right: sourcing and file quality

A frequent mistake is grabbing an icon from a wiki or image search that looks like the ISO symbol and dropping it onto a product label. Wikimedia Commons, for instance, hosts a large category of ISO 7000 symbol files, which is handy for reference but is not a substitute for the official artwork. Low-resolution or redrawn versions can print pixelated, carry subtle geometry errors, or represent the wrong registration number.

Getting the symbols right: sourcing and file quality — overview diagram

The official route is a paid one. The IEC webstore offers the ISO/IEC symbol database as a 12-month subscription, and the ISO catalog covers individual publication purchase. Check the current price on the webstore page before budgeting, since subscription terms change. For comparison, the IEC lists annual renewal of the narrower IEC 60417 database at CHF 330 on its own store page, and the joint database is a separate product with its own terms.

A practical checklist before a symbol goes on a product

  • Confirm the registration number and the exact title and meaning in the database.
  • Download the vector file (formats such as .ai, .eps, .dwg or .pdf) from the official store.
  • Keep a record of the source, the edition and the date you pulled it.
  • Have the label reviewed by whoever owns regulatory marking for your product. Some product categories carry their own labeling rules in addition to ISO 7000.
  • Never redraw or "clean up" a registered symbol.

There is no ISO 7000 certification

This is the most common misunderstanding behind the keyword, and it shows up in the questions people ask. ISO 7000 is a standard for graphical symbols, not a management system like ISO 9001 or ISO 27001. There is no certification audit, no certificate and no accredited certification body for it. A product can be described as using symbols from ISO 7000, or as compliant with the symbol requirements it references, but a company cannot be "ISO 7000 certified."

Why it matters in a B2B setting:

  • Marketing claims. Language that implies certification is technically incorrect and can mislead procurement teams.
  • Questionnaires and audits. If a customer asks whether you hold ISO 7000 certification, the accurate answer is that the standard is not certifiable, followed by a description of how your products use the symbols.
  • Vendor reviews. A reviewer who sees a made-up certification may start doubting every other claim in the response.

A clean way to phrase it: "Our product labels use graphical symbols registered in ISO 7000 and IEC 60417, sourced from the official ISO/IEC database." That sentence is verifiable and does not overreach.

ISO 7000 versus similar-looking standards

Numeric proximity causes a lot of confusion. This table separates the ones people mix up.

StandardWhat it coversWhere it applies
ISO 7000Registered graphical symbols for use on equipmentControls, displays and labels on machines and devices
IEC 60417Electrotechnical counterpart to ISO 7000Electrical and electronic equipment
ISO 7001Public information symbolsSignage in public spaces, such as airports and venues
ISO 7010Safety signsWarning, prohibition and mandatory-action signs
ISO 8000Data qualityData management, entirely unrelated to icons

The ISO 7001 reference describes it as the standard for public information pictograms, and notes that the 2023 edition is the latest. The ISO and Wikipedia material also groups ISO 7000 (equipment), ISO 7001 (public information) and ISO 7010 (safety signs) as the family of ISO graphical symbol standards.

What about "ISO 7" and ISO 8000?

There is no standalone "ISO 7" standard. People who search for it are often thinking of cleanroom classes. Cleanrooms are handled by ISO/TC 209, whose standards (such as the ISO 14644 series) classify cleanliness levels, which is why you hear "ISO class 7" in laboratories and manufacturing.

ISO 8000 is a different subject altogether. It is a multi-part standard on data quality, and ISO 8000-1:2022 gives the overview. If your question was really about the purpose of ISO 8000, it is about getting data that is fit for its intended use, not about symbols.

What about "use by date" symbols?

Some readers search for an "ISO 7000 use by date" symbol. The ISO 7000 registry does include symbols that appear on labels for many product types, and medical device labeling pulls from it. One example is a glossary entry that cites ISO 7000-2493 in the context of medical device labeling, where ISO 15223-1 governs which symbols are required. For a specific symbol, search the official database by keyword and confirm the registration number and requirements for your product category before using it.

Why GRC and security teams run into ISO 7000

If you work in governance, risk and compliance at a software or hardware company, ISO 7000 rarely shows up on its own. It appears in three places:

  1. Product documentation reviews. A customer's engineering or safety team asks how your hardware labels were designed.
  2. Vendor due diligence. A questionnaire lists a long run of ISO standards, and ISO 7000 appears next to ISO 27001 or ISO 9001 as if they were the same kind of thing.
  3. Tender documents. A bid requires symbols conforming to ISO 7000 or IEC 60417 on supplied equipment.

The key distinction for questionnaire answers is between standards you can be certified against (management systems such as ISO 27001) and standards you conform to (such as symbol standards). Getting that wrong in a written answer creates the kind of inconsistency that later costs a deal a round of clarification. For the certifiable side, our guides on ISO information security standards, how ISO 27001 affects tech security compliance and the difference between ISO 27001 and SOC 2 explain where certification does apply.

The ISO 8000 working groups make a point that applies well beyond data: quality is fitness for purpose rather than an absolute state. For GRC teams, that translates into mapping each standard you claim to the specific operational purpose it serves, instead of ticking boxes. A symbol standard serves usability and safety of equipment. A management system standard serves organizational process. Say which is which.

How to answer an ISO 7000 question in a security questionnaire

Here is the approach we suggest when a reviewer asks about ISO 7000 or lists it among required certifications.

  1. Identify the question type. Is it asking for a certification, or for conformity of product labeling?
  2. Answer precisely. If it asks for ISO 7000 certification, state that the standard does not provide for certification, then describe how your product uses registered symbols.
  3. Reference the source. Name the database edition and where you sourced the files.
  4. Point to the owner. Name the internal team that owns product marking, so the reviewer can follow up.
  5. Store the answer. Save the approved wording in your knowledge base so the next questionnaire gets the same answer.

Step 5 is where most teams lose time. The same standards question returns in questionnaire after questionnaire, answered slightly differently each time by whoever is available. Consistency is a trust signal in itself.

Our perspective: standards answers should be consistent and verifiable

Our perspective: standards answers should be consistent and verifiable — overview diagram

We see standards confusion constantly in the questionnaires that pass through our platform's workflow: a reviewer lists every ISO number they know, and the respondent either over-claims or answers from memory. Our view is simple. Every answer about a standard should state its type (certifiable management system, conformity standard or technical specification), point to evidence, and be reused from an approved source instead of rewritten under deadline pressure.

That is also how we designed our retrieval-based AI. It drafts answers from your own approved content, such as policies, prior responses and documents in Confluence, Notion, Google Drive, OneDrive or SharePoint, and attaches a confidence score so your reviewers know which answers to check first. A question about ISO 7000 is a good example of one where the right answer is short, precise and the same every time. If you want to see how we think about the certifiable standards that questionnaires usually care about, our guide to ISO frameworks and security automation at scale is a good next read.

— Gaspard

Where Skypher fits

ISO 7000 itself is not something software certifies, but the questionnaires that mention it are exactly what our platform handles. The Questionnaire Automation Tool parses uploaded questionnaires in any format, drafts answers from your approved knowledge base, supports real-time collaboration for unlimited users, and connects to third-party risk management portals such as OneTrust and ServiceNow. Teams that want to publish approved answers and evidence for customers ahead of time can do that through our Trust Center. Pricing is quote-based, so the quickest way to see whether it fits is to talk to us about a demo.

If your real task is proving compliance to customers, these guides cover the certification-based standards in more depth:

FAQ

What is ISO 7000 certification?

There is no such thing. ISO 7000 is a registry of graphical symbols for use on equipment, not a management system, so no certification audit exists. A product can use symbols from the standard, but a company cannot be certified to it.

What does ISO 7 mean?

There is no standalone ISO 7 standard. The phrase usually refers to cleanroom class 7 under the ISO/TC 209 cleanroom standards, or to the ISO 7000 series of symbol standards. Check the context where you saw it.

Is ISO 7000 the same as IEC 60417?

No, but they are closely linked. ISO 7000 and IEC 60417 are separate standards managed by different committees, yet the joint IEC/ISO database combines both. Most engineers search that one database for all symbols.

Can I download ISO 7000 symbols for free?

You can find low-resolution images online, but the official vector files require a purchase or subscription from the IEC webstore or ISO. For anything printed on a product, use the official files so markings stay accurate and sharp.

What is the purpose of ISO 8000?

ISO 8000 is about data quality, not graphical symbols. Its overview part sets out a framework for managing data so that it is fit for its intended use.
